“80键分体键盘，采用非常便宜的单片机和USB HID接口芯片。目的就是打造一款低成本的机械键盘DIY方案。”
概述
hard 文件夹内是键盘的硬件设计文档，PCB设计使用的是KiCad开源软件。
soft 文件夹内是键盘的软件实现。逻辑部分用的是新唐的N76E003单片机。USB接口使用的是 CH9328 USB HID 芯片。

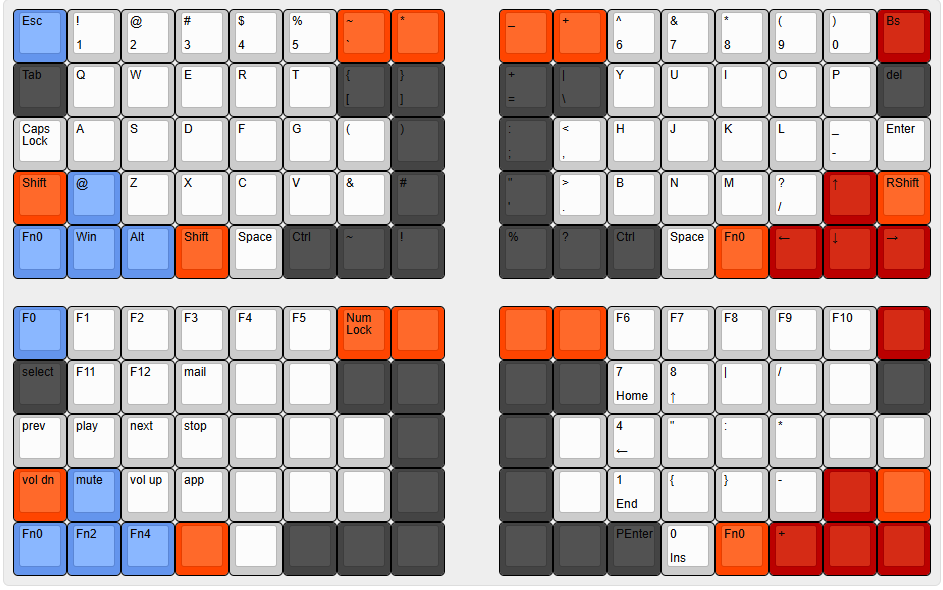

键位图

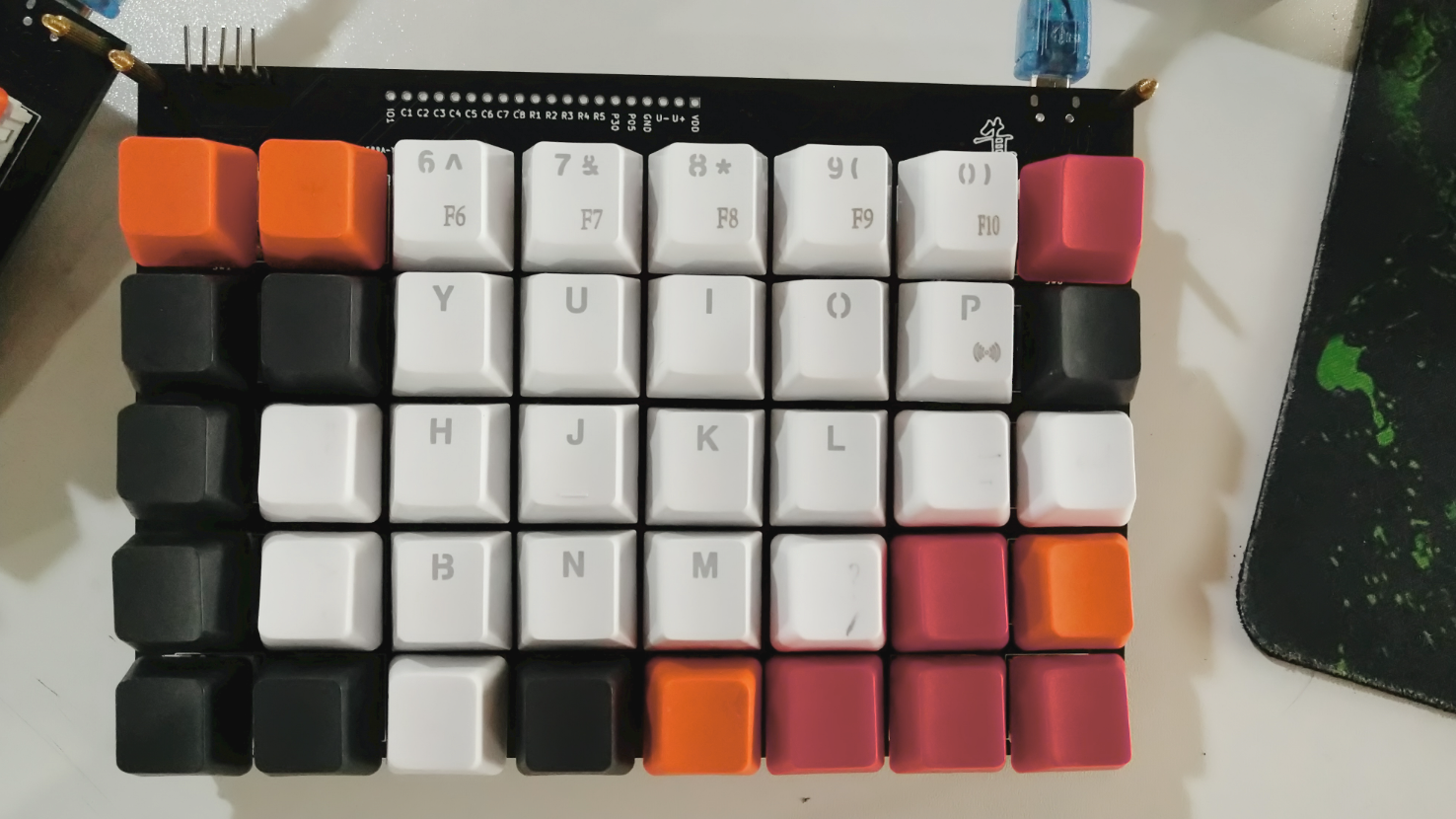

实物图
License
MIT License
仓库 & 下载
可以在Gitee中获取开源仓库：
80键分体键盘
80键分体键盘，采用非常便宜的单片机和USB HID接口芯片。目的就是打造一款低成本的机械键盘DIY方案。
