发布项目
项目概述

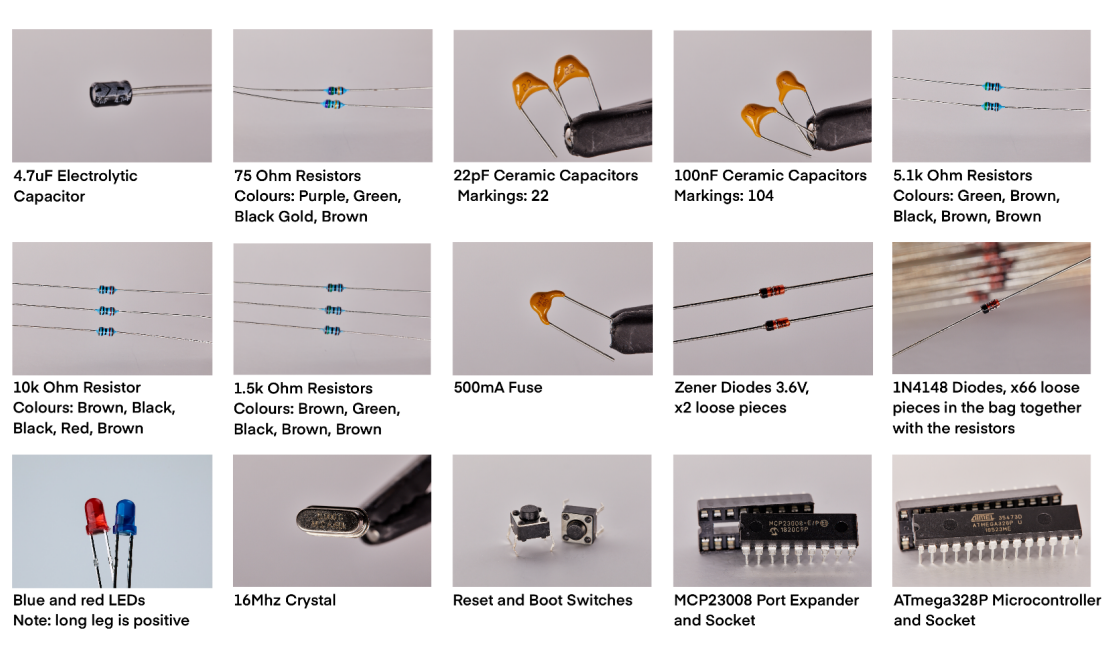

这款 Alice 配列键盘套件仅采用直插式元器件设计，灵感源自 Plaid 键盘与 TGR Alice 键盘。
主控芯片采用 ATmega328p，基于 VUSB 方案开发，可适配 QMK 固件。
若需对 PCB 进行修改，请使用KiCad V5.0 或更高版本—— 该版本已集成大部分所需库文件，额外的库文件也已随项目提供。
License
CC-BY-SA-4.0 license

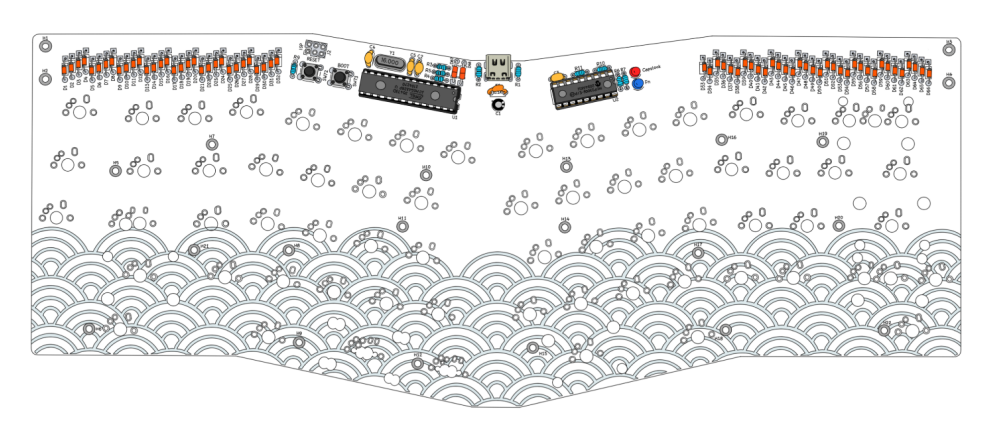

Seigaiha Alice人体工学配列直插式键盘
一款采用 USB-C 接口的 Alice 配列直插式键盘，设计灵感源自 Plaid 键盘与 TGR Alice 键盘。
187
Star
PCBA
设计文件
Seigaiha-main-pcb.zip4.76MB;}.b,.c{fill:%233f96f0;stroke:%233f96f0;}.b{stroke-width:0.3px;}.c{stroke-width:0.2px;}%3c/style%3e%3c/defs%3e%3cg%20transform='translate(-2%20-2)'%3e%3crect%20class='a'%20width='16'%20height='16'%20transform='translate(2%202)'/%3e%3cg%20transform='translate(2%203)'%3e%3cpath%20class='b'%20d='M13.643,31H4.357c-.2,0-.357.224-.357.5s.16.5.357.5h9.286c.2,0,.357-.224.357-.5s-.16-.5-.357-.5'%20transform='translate(-1%20-18)'/%3e%3cpath%20class='c'%20d='M11.583,14.589l4.392-4.409a.415.415,0,0,0-.584-.586L12,13V4.416a.414.414,0,1,0-.828,0V13l-3.39-3.4a.415.415,0,1,0-.584.586Z'%20transform='translate(-3.562%20-3)'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
其他附件
- 1.Seigaiha-main-bom.zip239.38KB
- 2.Seigaiha-main-用户使用手册.zip10.36MB
EDA查看器
复制嵌入代码
